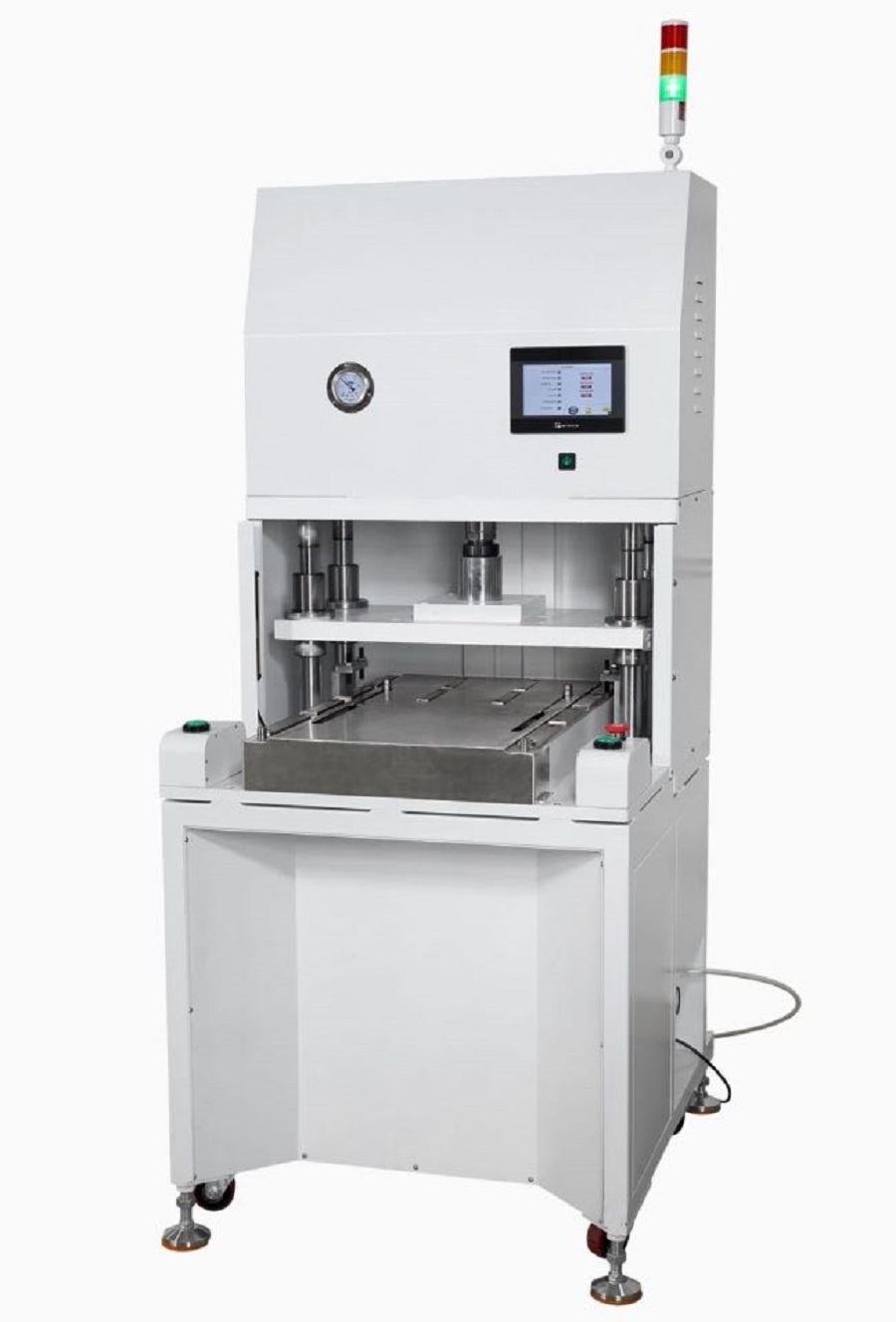

結構緊湊，剛性持強，操作簡單安全，下模自動進出，取放產品方便，成品可落入抽屜，將切板時產生的內應力降至最低并且避免錫裂，沖切半成品PCB、FPC效率極高，PCBA分板機為模具沖裁式分板機，設備結構緊湊，機身堅固。中文觸摸屏顯示，面板清晰，異常報警，設備有通用性，可更換多款模具，且換模方便快捷，模具高度不受限制。
It has the advantages of compact structure, strong rigidity, simple and safe operation, automatic entry and exit of the die, convenient taking and placing of products, and the finished products can fall into the drawer, which can minimize the internal stress generated during cutting and avoid tin cracking. The PCBA board splitter is a die blanking type plate splitter with compact structure and firm body. Chinese touch screen display, clear panel, abnormal alarm, universal equipment, can replace a variety of molds, and mold change is convenient and fast, mold height is not limited.
設備安全性 Equipment safety：
雙開關雙手動作啟動，設備配置下模進出滑道，下模自動進出，取放產品方便安全，設備急停開關，發現問題及時停機，設備安全門，避免安裝調試模具時手的誤入，安全氣壓設置功能，超限報警。自動計數，超限停機，將切板時產生的內應力降至最低并且避免錫裂，沖切半成品PCB、FPC效率極高。
The device is equipped with a slide way for the lower mold to enter and exit automatically. The product can be taken and placed conveniently and safely. The emergency stop switch of the equipment can stop the machine in time when problems are found. The device safety door can avoid the wrong entry of hands when installing and debugging the mold. The safety air pressure setting function can alarm when exceeding the limit. Automatic counting and over limit shutdown can minimize the internal stress generated during cutting and avoid tin crack. The efficiency of punching semi-finished PCB and FPC is very high.
機器規格 Machine specifications
|
機器尺寸:(長×寬×高) Machine size: (L × W× H)
|
730*670*1500mm
|
|
出力 output
|
10T
|
|
工作氣壓 Working pressure
|
0.50-0.70Mpa干燥氣源 Dry air
|
|
放板面積 Plate area
|
330*220mm
|
|
使用電壓 Use voltage
|
220VAC
|
|
機器重量 Machine weight
|
580KG
|
